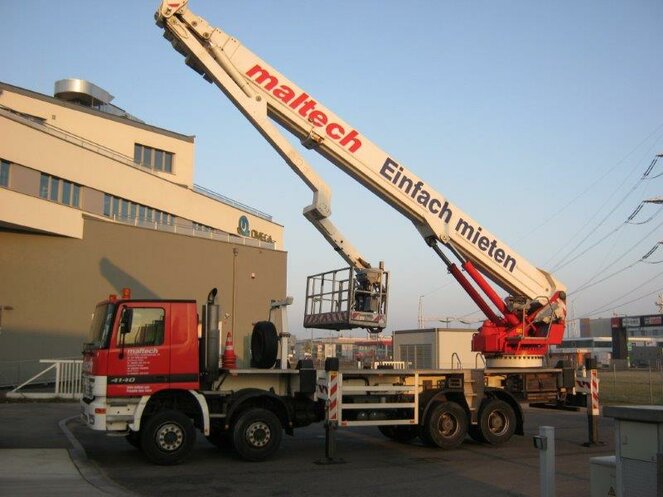

Truck-mounted Platform Lift MTG 53

  • Operator
  • With rotatable basket &
  • 230/400 V Powersupply in basket
  • High pressure connection for water or air

Technical data

Max. Working Height
53 m
Outreach
28 m
Gross weight
31,710 kg
Height
3.95 m
Drive
Diesel
Platform length
2.45 m
Platform width
0.9 m
Transport length
12.23 m
Transport width
2.5 m
Platform rotation
2 x 75°
Max. Platform Height
50.6 m
Capacity on extension
100 kg
Capacity
400 kg
Slewing
560°
stabiliser width one sid
4.75 m
Stabiliser width both sides
6.4 m
Min. Stabilizer Width
3.18 m
