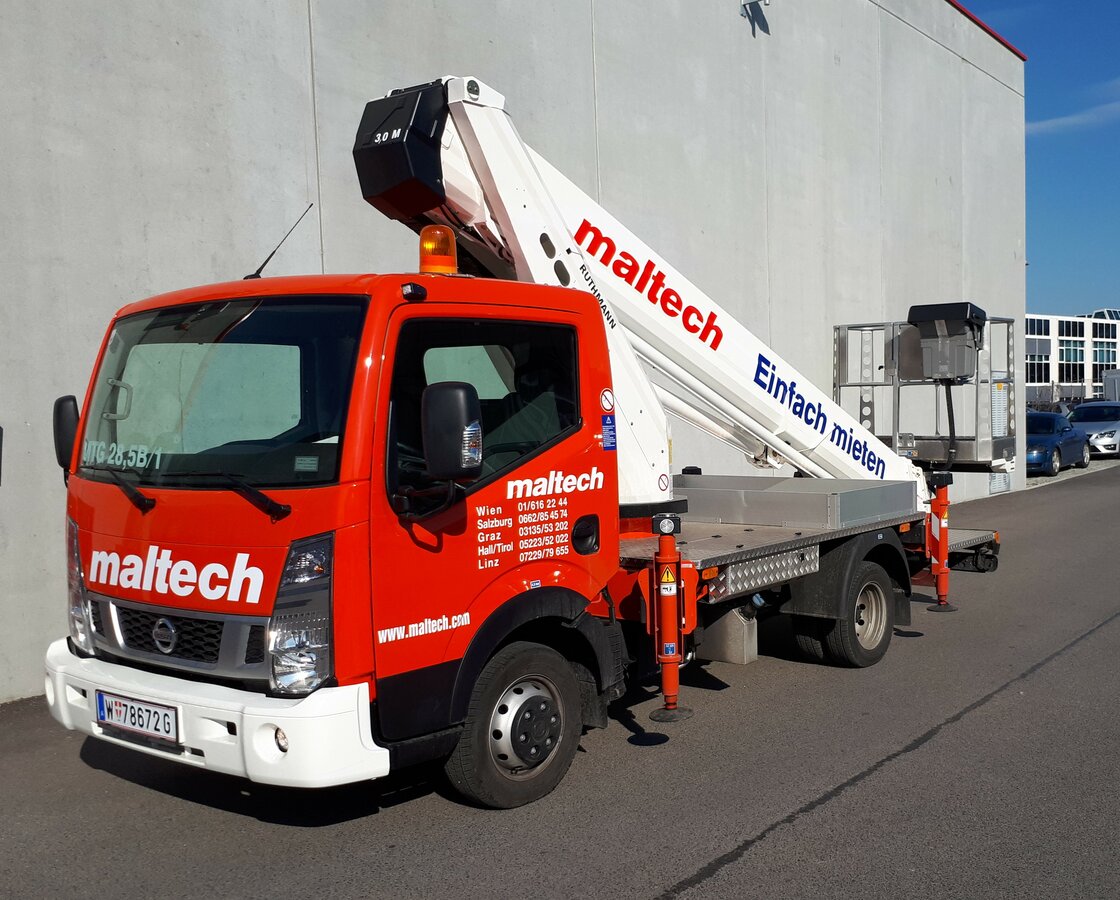

Truck-mounted Platform Lift MTG 28,5B

  • For self drive with driver`s license "B"
  • With rotatable basket
  • Basket jib

Technical data

Max. Working Height
28.55 m
Outreach
16.2 m
Gross weight
3,500 kg
Height
3.02 m
Drive
Diesel
Platform length
0.7 m
Platform width
1.4 m
Transport length
6.95 m
Transport width
2.2 m
Platform rotation
2 x 85°
Max. Platform Height
26.55 m
Capacity
230 kg
Slewing
225°
stabiliser width one sid
2.93 m
Stabiliser width both sides
3.66 m
Min. Stabilizer Width
2.2 m
