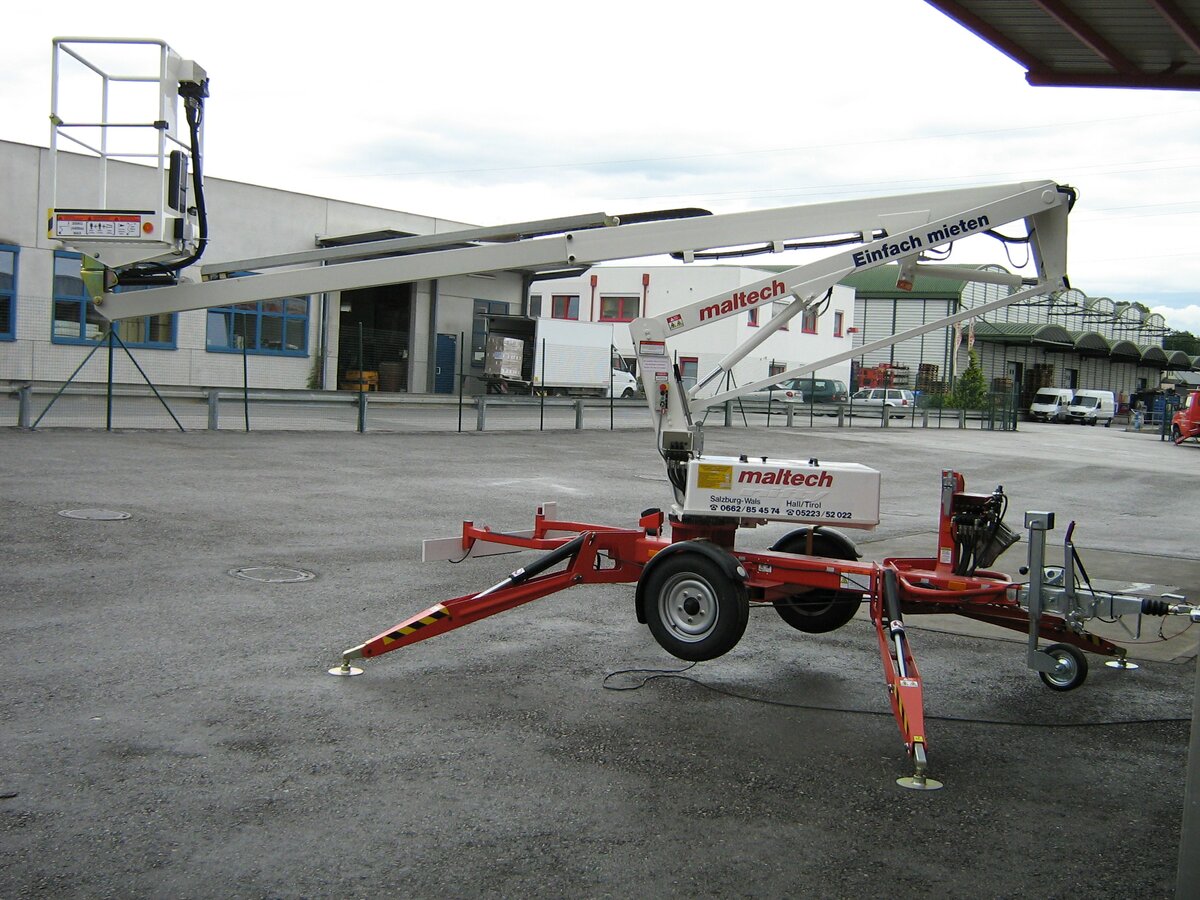

Trailer-mounted Platform Lift MA 12

  • Hydraulic outriggers
  • Device width can be reduced to 1.10m

Technical data

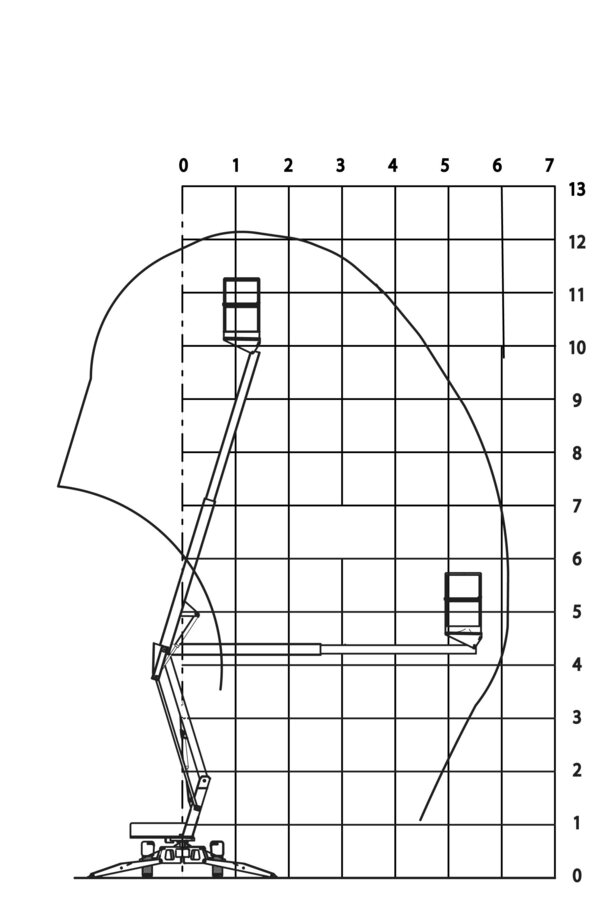

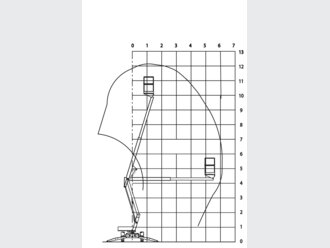

Max. Working Height
12.2 m
Outreach
6.1 m
Gross weight
1,425 kg
Height
1.9 m
Drive
230 V Netzanschluß
Platform length
0.65 m
Platform width
1.1 m
Capacity
200 kg
Transport length
4.5 m
Transport width
1.55 m
Stabiliser width
3.55 m
Max. Platform Height
10.2 m
Slewing
360°
